Description

Product details

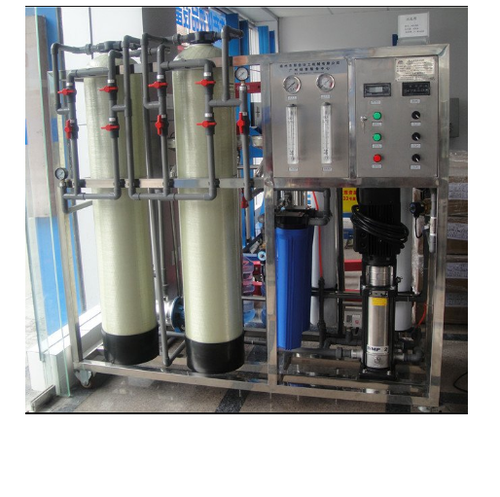

Designed Raw Water Analysis Total Dissolved Solids : 1500 ppm [Max] TREATED WATER PARAMETERS [EX-RO PLANT] TDS mg/l : < 75 ppm pH : 5.5 – 6.5 LIMITING CONDITIONS OF THE PLANT: OXIDISING ELEMENTS : NIL IRON : NIL OIL & GREASE : NIL WATER SOURCE : BOREWELL pH : 4 – 11 CHLORINE : NIL SDI : 3 (Max) DESIGN PARAMTERS FEED FLOW : 2200 LPH PERMEATE FLOW : 2200 LPH MAXIMUM INLET TDS : 1500 ppm PERMEATE TDS : < 50 ppm RECOVERY : 95 % INLET PRESSURE : 6.0 Kgs/cm2 HP MOTOR RATING : 2.0 HP [2-22 Kw] POWER : 1-Phase, 220 V AC SCOPE OF SUPPLY CARTRIDGE FILTER [5 Micron] : 2 No. RO MEMBRANES : 40*40 ( VONTRON/CSM) NO. OF MEMBRANES : 4 MEMBRANE HOUSING : 2( Stainless Steel) NO. OF HOUSING : 2 HIGH PRESSURE PUMP [SS 2-22] : One (CRI/lubi) PRESSURE GAUGES [0-5 & 0-20] : One Each SKID [SS] : One ROF INDICATOR : Two CONDUCTIVITY INDICATOR [0-200 μs] : One INTERCONNECTING PIPEWORK : One Lot SS LP SWITCH [SS] : One STAINLESS STEEL Vessel 14-65: 2 (Steel make) Tds ,meter online : 1 (Digital) Frame : 1.5 Inches Stainless Steel Pannel box : 1 Sand Chemical : 300 kg Carbon Chemical : 50 kg Pipework and Supply : SS 20. Multiport valve : 1.5 inches(genuine) Dosing System
